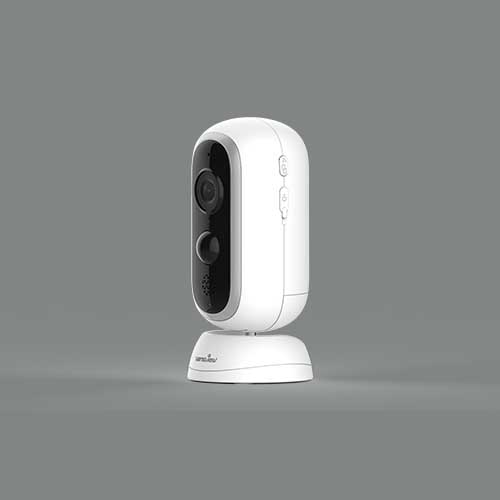

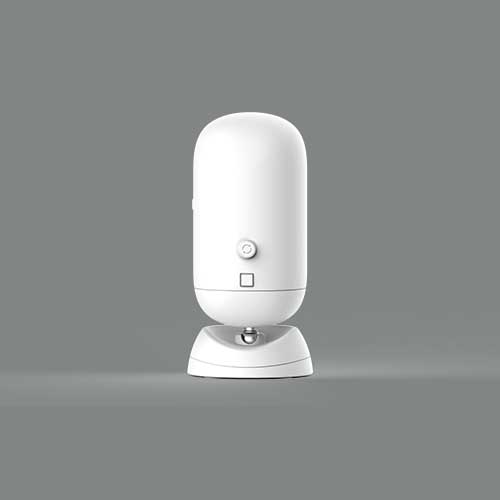

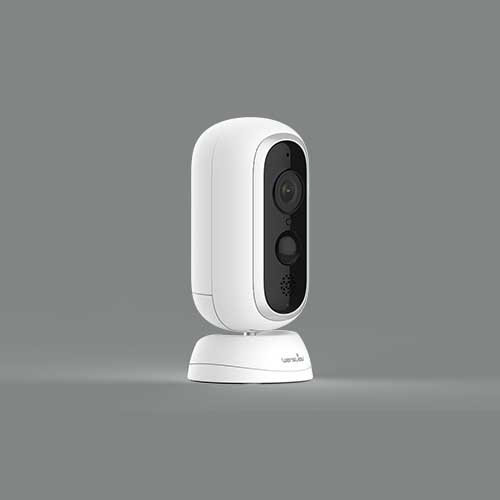

Wire-free Battery Camera

Basic Parameters Model NCM801RTC Lens 105°wide angle,f=2.0 Sensor 1/2.7inch Resolution 1080p(1920*1080)Full HD Resolution Microphone Built-in Speaker Built-in 1w 8 Ω PIR Detection Detection angle110 Battery life Two 18650 Lithium batterie

Products Inquiry

Product Details

 Basic Parameters


Model

NCM801RTC


                        Major

 hardware

Main   IC

Ingenic T30Z


Image   Sensor

PS5260 2MP pixels


Total number of pixels

2.0MP,1080P 1920*1080



N/A


Lens

HD 2 million lens, f = 3.6mm F = 2.2mm angle 110 °


Audio

video


Image rotation

Invert


Audio   Input \ Output

Built-in microphone \ speaker


Auxiliary

IR-CUT

Electromagnetic IRCUT, day and night function


Infrared   light control

Automatically controlled by light sensor


illumination

4 pcs 850 SMD infrared lights 6-8 meters effective


Photoresistance

0   Lux




Connection

WIFI

BCM43438 WIFI module, support 802.11b / g / n


RJ45

N\A


Screenshot

Mobile real-time screenshot

Support


PIR

Sensitivity

Level 5 sensitivity is adjustable. The more sensitive, reducing the false negative rate,

false alarm rate increase


Motion Detection

PIR motion detection, working distance 6.5M


Weight

195g


power supply

5V 2A(Micro USB)/Two 18650 lithium batteries


wake

Wake method and work content

APP-side active wake, live video

Wake up from PIR, record alarm to cloud, and push alarm message

Press the button to wake up. Reconnect the server to get the latest configuration. Check new version

Power consumption wake up (external power supply, low power, full power)


 APP

Android

Ajcloud


IOS
