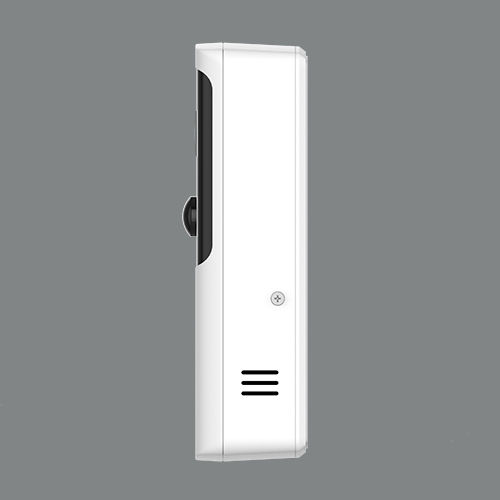

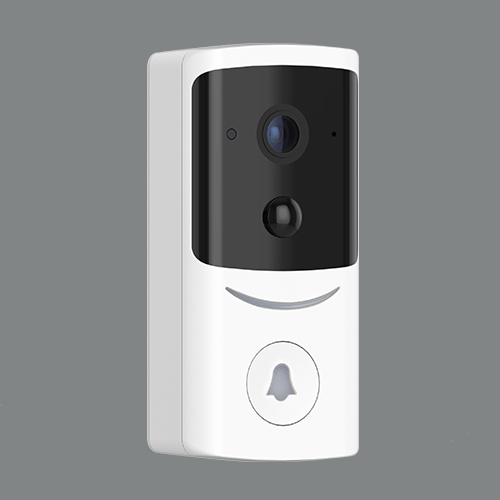

Doorbell camera 830RTD

Basic Parameters Model 830RTD+RF Ding Dong Major hardware Main IC Ingenic T31Z,Built-in 512M DDR, 1.3G main frequency video 1080P,15 frames/sec Lens 2.7mm focal length F2.0, viewing angle greater than 110° monitor Built-in MIC, effecti

Products Inquiry

Product Details

 Basic Parameters


Model830RTD+RF Ding Dong
Major hardware

Main IC

Ingenic T31Z,Built-in 512M DDR, 1.3G main frequency

video

1080P,15 frames/sec

Lens

2.7mm focal length F2.0, viewing angle greater than 110°

monitor

Built-in MIC, effective at 3 meters distance

Intercom

Built-in speaker, effective at 3 meters

Night vision

4pcs 850nm infrared lamps, night vision distance is greater than 4 meters

Video Audio

PIR

Support PIR detection, the detection distance is adjustable from 1 to 4 meters, and the horizontal angle is 90 degrees

WIFI

Support 2.4G, 802.11b/g/n, built-in WIFI antenna

Anti-demolition

When the doorbell is removed from the fixed bracket, an alarm will be sent to the APP

Working status indicator

Red and blue two-color indicator light

Doorbell button indicator

Green light

Connection

Configuration button(RST)

Realize the network configuration connection with the router

power button

Long press the button to realize the switch function

Physical Indexes

Doorbell button

Call the user through this button

Microusb interface

Support external 5V 2A DC power supply, and realize to charge the battery

battery

Built-in 18650 battery pack (5200mah)

Matching Dingdong

Indoor "dingdong" equipment; get electricity directly from the power socket; support European and American sockets; a variety of ring tones can be equipped

Standby current (during sleep period)

230~260uA
