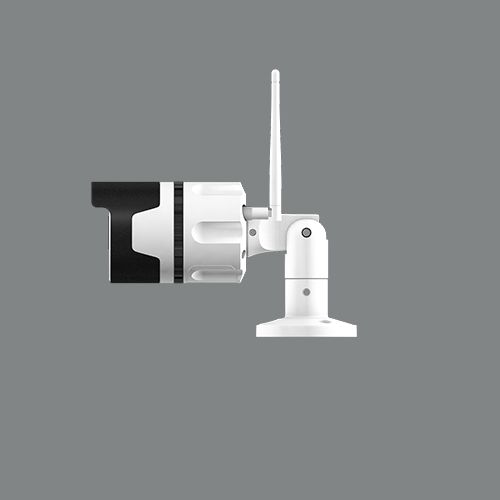

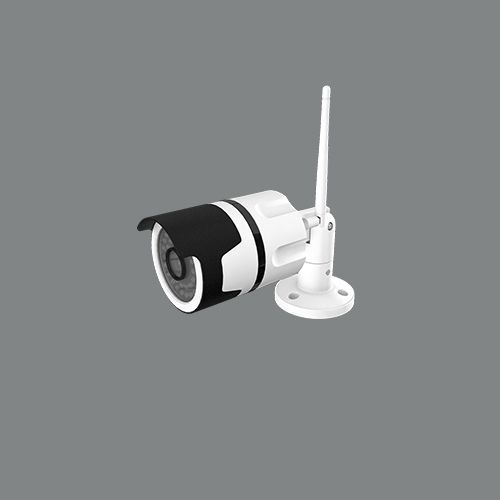

Smarteye IP Camera 756RB

Smarteye IP Camera 756RB ,36 infrared LED, 25m distance,1280*720/640*360,Mega Pixel lens,f=3.6mm,F=2.2,View angle:60 degree,H.264,CE,FCC

Products Inquiry

Product Details

    Basic Parameters


Model

NCM756RB







Hardware Features



Interface

WI-FI   Support

Power   Interface

Reset   Button

36 infrared LED, 25m distance

Pan/Tilt

N/A

Image Sensor

1/4” CMOS Sensor

Display Resolution

1280*720/640*360

Lens

Mega Pixel lens,f=3.6mm,F=2.2,View angle:60 degree

Dimension

196*65*65mm

Power Input

12V 1A DC,<8W



Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4GHz

Channel

1~13

Security

WPA/WPA2,WPA-PSK/WPA2-PSK

WPS

One key configure wifi









Software Features

Protocols & Standards

TCP/IP,   DHCP,  FTP,   SMTPNTP,   UPNP,HTTP, UDP/IPDDNS     P2P

Image Compression

H.264

Image Settings

Image   Settings:Saturation,   brightness, contrast adjustable through client software   or web browser

Maximal Frame Rate

25fps

Code rate

256kbps~2048kbps

Account permissions

Three   Level

Motion Detection

Support   Four motion detection,send alarm pictures or video to Micro SD.send alarm   pictures to FTP/Email.

Manage Software

P2P   View client software   (support Android, iPhone),
          IP / DDNS View client software (support Android
iPhone),
          PC centralized control and management platform

Audio

Two-way     audioAudio Compression: G.711

PC Requirements

CPU     2.0GHz or above (suggested 3.0GHz)

Memory     Size 256MB or above (suggested 1.0GHz)

Display     Card 64M or above

Windows     8,7,10XP,Mac   OS

Browser:IE7/IE8/IE9/IE10/IE11,Firefox,Safari,Goolge     Chrome,other standard browsers

SmartPhone requirements

Android version 4.5 and above; iOS version 7.0 and above; Windows Phone uses browser to view or the third party APPs.

                        Other parameters

Package Contents

One   IP-Camera

One   Power adapter
          Mounting bracket set

One   Quick Guide

Temperature

Operate     Temper-10 ~ ,40Storage Temper-20     ~ 70

Humidity

Operating     Humidity10%   ~ 90%Storage   Humidity:5%     ~ 98%

certificates

CE,FCC
