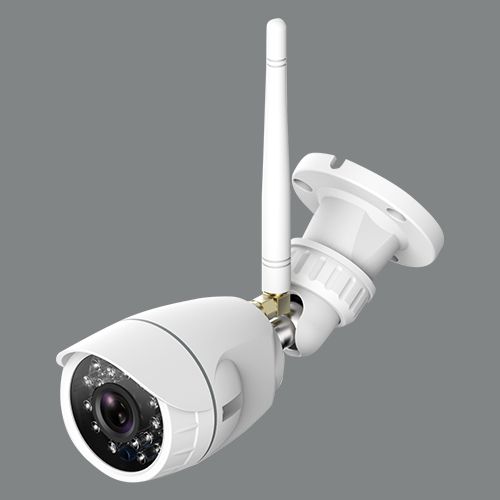

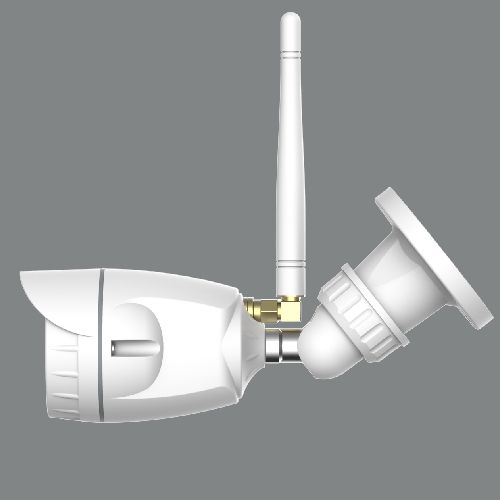

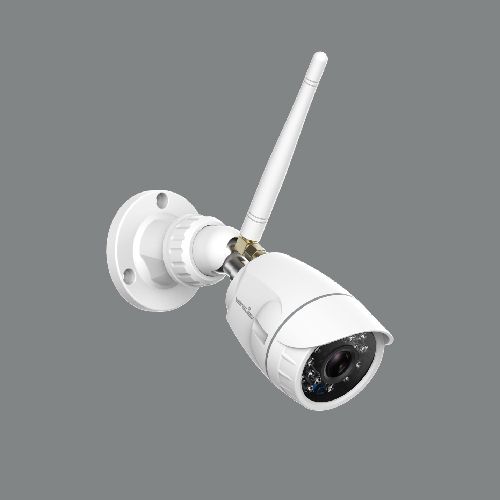

Bullet Outdoor Camera 757JBU

                        Hardware Features

Interface

2.4GWifi Support

Power Interface(Tuning fork big head)

Reset   Button

24PCS  850nm lights, Night Vision up to 65 feet

RJ45 network port

Pan/Tilt

N/A

Image Sensor

superpix SC2307    4 million pixels

Display Resolution

HD 4 million lens, f= 4mm F=2.8mm  angle100°

Lens

fMega Pixel lens,f=3.6mm，F=2.2,View angle:60 degree

Dimension

157*58*58 mm

Power Input

12V 1A<6W

Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4 G   WIFI

Security

WPA/WPA2,WPA-PSK/WPA2-PSK

                        Software Features

Protocols & Standards

TCP/IP、UDP/IP、HTTP、DHCP、NTP、802.11b/g/n

Image Compression

H.264

Image Settings

Invert

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

Support user sharing permissions

Motion Detection

Support motion detection

Manage Software

WANSVIEW CLOUD(support Android, iPhone)

Audio

 G.711

Device version requirement

IOS 9.0 or higher (iphone 5S and its follow-up models)

Android 4.0 or higher

                        Other parameters

Package Contents

One   IP-Camera

Network cable

One   Power adapter

One Warranty card

3DB antennaMounting bracket set

One   Quick Guide

Temperature

-10℃ ~ ,40℃

Humidity

10% – 90%

certificates

CE,FCC
