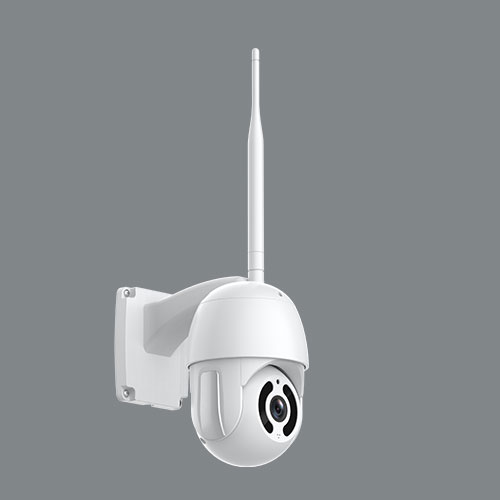

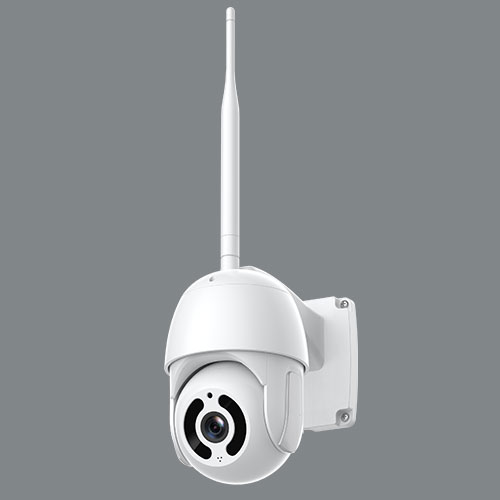

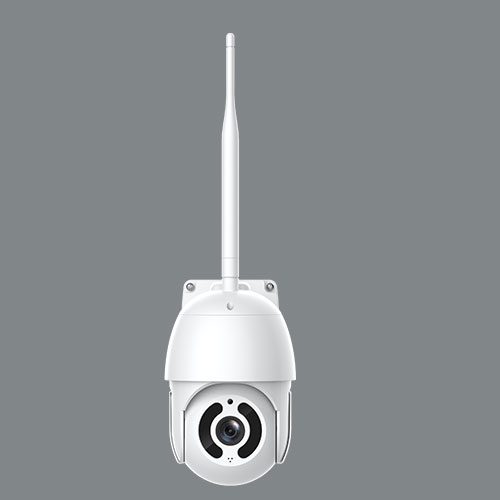

Smarteye IP Camera 792JBU

Basic Parameters Model 792JBU Hardware Features Interface TF card slot 2.4GWifi Support Power Interface(Micro USB) Reset Button Built-in Microphone Speaker 12 850nm infrared lamps, 4 wide angles, 8 narrow angles. RJ45

Products Inquiry

Product Details

    Basic Parameters


Model

792JBU







Hardware Features



Interface

TF card slot

2.4GWifi Support

Power Interface(Micro USB)

Reset Button

Built-in Microphone & Speaker

12 850nm infrared lamps, 4 wide angles, 8 narrow angles.

RJ45 network port


Pan/Tilt

PTZ: Pan: 350°,Tilt:95°

Image Sensor

superpix SP2305   2 million pixels

Display Resolution

2.0MP,1080P 1920*1080(640*360)

Lens

HD 4 million lens, f = 4mm F = 2.8mm. Diagonal 100 degrees

IR-CUT

Electromagnetic IRCUT is used. Day and night function.

Power Input

5V 1A<6W



Wireless  Features

Wireless Speed

IEEE802.11b/g/n   150Mbps

Operating Frequency

2.4GHz WIFI

Main IC

Ingenic T21N  512M memory

Security

64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK











Software Features

Protocols & Standards

TCP/IP、UDP/IP、HTTP、DHCP、NTP、802.11b/g/n

Video image format

H.264

Image rotation

Invert

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

Support user sharing permissions

Motion Detection

Support motion detection

Manage Software

AJCLOUD(support Android, iPhone)

Audio

 G.711\AAC

Device version requirement

"IOS 9.0 or higher (IPHONE 5S and its follow-up models)

Android 4.0 or higher




                        Other parameters

Package Contents

One   IP-Camera

One   Power adapter
One Warranty card

One   Quick Guide

Mounting bracket set

Network cable

5DB antenna

Temperature

-10 ~ ,40

Humidity

10% – 90%

certificates

CE,FCC,ROHS
