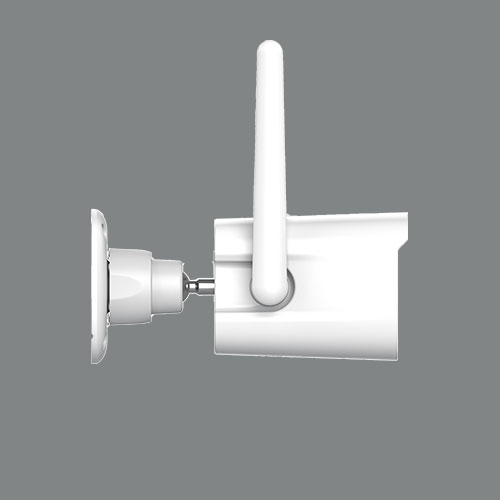

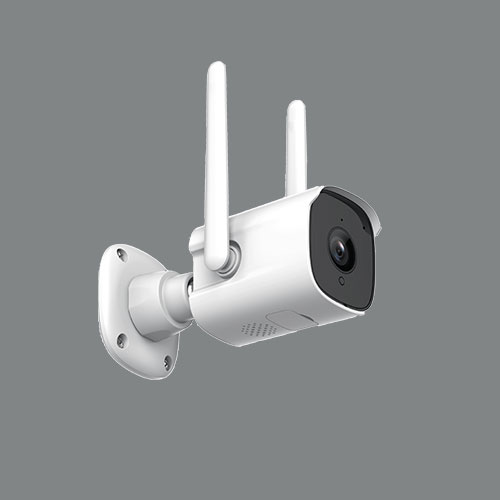

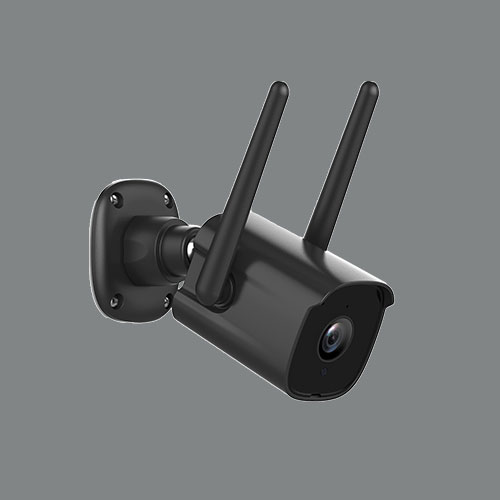

Smarteye IP Camera 764JBU

Hardware Features

Interface

TF card slot

2.4GWifi Support

Power Interface(USB 2.0)

Reset Button

Built-in Microphone & Speaker

8PCS  SMT 850nm lights, Night vision is approximately 32 feet

Pan/Tilt

N/A

Main IC

Ingenic T21N  512MBPS

Image Sensor

1/2.9"   2 million pixels

Lens

HD 4 million lens, f = 4mm F = 2.8mm.

80° horizontal; 95° diagonal

IR-CUT

Electromagnetic IRCUT is used. Day and night function.

Bare machine weight (g)

170g(With bracket)

Wireless  Features

Bare machine size (length * width * height)

125*60*54mm (With bracket)

Bare metal packaging size

130*130*65mm

power supply

5V 1A

Waterproof and dustproof grade

IP65

Maximum power consumption

3W

Software Features

Wireless Speed

IEEE802.11b/g/n 150Mbps

Operating Frequency

2.4 G   WIFI

Security

64/128-bit WEP, WPA/WPA2,WPA-PSK/WPA2-PSK

Protocols & Standards

TCP/IP、UDP/IP、HTTP、DHCP、NTP、802.11b/g/n

Video image format

H.264

Image rotation

Invert

Maximal Frame Rate

15 frames / sec

Code rate

425kbps-1024kbps

Account permissions

 Support user sharing permissions

audio format

G.711A\AAC

Motion Detection

Support motion detection

                        Other parameters

Bare metal

Packing box + inner support

Installation guide

power supply

Wall mounting kit

Network cable

1PCS (with 3m power cord)

1PCS

1PCS

5V 1A (without wire) 1PCS

Screw package 1PCS

5DB 1PCS

\

Temperature

－10°C~＋50°C

Humidity

10% – 90%

certificates

CE,FCC，ROHS
